You love the look of real stone, but your budget, schedule, and installers all start sweating the moment someone says “full‑thickness cladding,” and suddenly your dream facade feels heavier than the building itself.
Switch to flexible stone panels to cut weight, simplify installation, and reduce costs while keeping authentic stone performance—this industry white paper on flexible stone panel performance 2026 explains tested strength, durability, and code compliance so you can specify with confidence.
◆ 2026 performance benchmarks for flexible stone panels in commercial facades
In 2026, industry white papers set clear benchmarks for flexible stone panel strength, weight, and weather resistance. Designers use these metrics to compare systems and reduce risk.

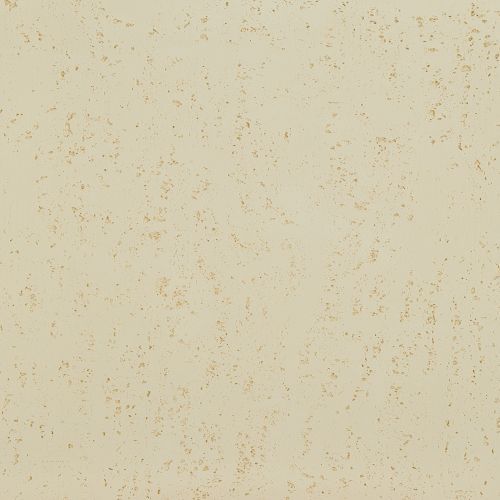

Meisa panels, including collections like OFF White Travertine and Multiple colors-Travertine romano, focus on reliable performance with a light, flexible backing.
1. Mechanical strength and flexural performance
Recent tests measure flexural strength, tensile bond to the substrate, and allowable deflection. These values guide safe spans and help reduce the need for heavy support frames.
- Flexural strength typically exceeds 12–18 MPa for façade use.
- Deflection limits follow common curtain wall ratios such as L/240.
- Reinforced backings keep natural stone veins from cracking in service.
2. Panel weight, thickness, and installation speed
Thin, light panels lower structural loads and scaffold time. Installers move larger formats with fewer anchors, which speeds commercial façade schedules and reduces onsite waste.
| Parameter | Typical Value | Benefit |
|---|---|---|
| Panel thickness | 2–4 mm stone layer | Slim profile, easier detailing |
| Weight | 3–6 kg/m² | Light support framing |
| Format size | Up to 1200×2400 mm | Fewer joints, cleaner look |
3. Aesthetic stability and color consistency
Benchmarks now track gloss, color shift, and surface chalking over time. Stable finishes give designers confidence when specifying light stones on large elevations.
- ΔE color change targets stay below 3–4 after extended UV tests.
- Protective sealers limit water marks and pollution staining.
- Factory quality control improves pattern and tone matching.
4. Compatibility with façade systems and substrates
Flexible stone panels must work with many substrates, from concrete and masonry to insulated panels. Tested adhesives and mechanical supports reduce interface failures.
- Adhesion tested on common sheathing and render boards.
- Compatible with ventilated rainscreen and direct-bond façades.
- Movement joints manage thermal and structural movement.
◆ Durability metrics under thermal cycling, UV exposure, and freeze–thaw conditions
2026 durability studies focus on how flexible stone panels age under real climate loads. Labs now combine thermal cycling, UV light, and freeze–thaw testing to predict service life.
Reliable products, such as Meisa’s Hemp woven soft stone black, show stable adhesion and low surface damage even after long test cycles.
1. Thermal cycling and dimensional stability
Thermal cycling tests move panels between hot and cold extremes. Results track warping, cracking, and bond loss so designers can specify safe joint widths and support spacing.
| Test Range | Cycles | Typical Result |
|---|---|---|
| -20°C to +70°C | 200 | No delamination, minor deflection |
| -10°C to +60°C | 300 | Stable bond, unchanged geometry |
2. UV exposure and color retention
Accelerated UV exposure compares gloss loss and color change between different stones and coatings. Panels with high-quality sealers keep façades bright with less cleaning.
- Color shift (ΔE) measured at fixed hour intervals.
- Reports note gloss drop as a key visual factor.
- UV-stable resins prevent yellowing of backing layers.
3. Freeze–thaw resistance and moisture control
Freeze–thaw tests study how absorbed water expands in pores and joints. Low water uptake and good drainage protect thin stone from scaling and edge damage.
- Water absorption kept below defined limits for exterior use.
- Ventilated cavities help dry behind-panel moisture.
- Edge sealing reduces ice damage risk in cold climates.
4. Sample durability data visualization
The following bar chart script illustrates example durability scores for different flexible stone systems under combined ageing tests.
◆ Structural behavior of flexible stone panels under wind loads and impact
Recent tests study how flexible stone panels respond to wind pressure, suction, and impact. Results guide anchor layouts, panel spans, and safety margins for high-rise façades.
1. Wind pressure, suction, and panel deflection
Pressure chamber tests expose panels to design wind speeds. Engineers track deflection, residual set, and fastener performance to set maximum span and support requirements.
- Design pressures aligned with local building codes.
- Deflection limits keep joints tight and sealants intact.
- Backings resist flutter under repeated wind cycles.
2. Impact resistance and building safety
Soft and hard body impact tests simulate human contact and flying debris. Flexible backings help absorb energy and reduce the chance of stone fragments falling.
- Ball-drop tests check localized cracking and denting.
- Pendulum tests simulate crowd impact at low levels.
- Safety criteria focus on retention of damaged pieces.
3. System design, anchors, and redundancy
Structural behavior also depends on anchors, rails, and adhesives. Redundant support and tested details reduce failure risk if one fixing point degrades over time.
| Element | Role | Design Focus |
|---|---|---|
| Mechanical clips | Primary restraint | Corrosion resistance, pull-out strength |
| Adhesive bed | Stress sharing | Shear strength, ageing stability |
| Rails/frames | Load transfer | Stiffness, thermal movement |
◆ Fire resistance classifications and compliance pathways for flexible stone systems
Industry white papers now detail test routes for flexible stone systems in external walls, including reaction-to-fire ratings and full wall assembly tests.
1. Reaction-to-fire performance of thin stone composites
Panels combine stone with backing layers and adhesives. Fire tests measure flame spread, smoke, and heat release so suppliers can classify complete systems, not just stone.
- Backings and resins selected for low flame spread.
- Stone layer acts as a natural thermal shield.
- Test reports support code compliance submittals.
2. System-level testing and façade regulations
Full-scale façade tests assess fire spread across multiple floors. Designers use listed systems and tested details to meet local high-rise and boundary wall rules.
| Test Scope | Output | Use |
|---|---|---|
| Complete wall build-up | Pass/fail, damage extent | Approval for façade type |
| Joints and corners | Detail guidance | Safe execution onsite |
3. Documentation, labeling, and project approval
Clear test reports, installation guides, and product labels help inspectors confirm that installed systems match the tested configuration and maintain fire performance.
- Unique identification of tested panel types.
- Traceable records from factory to jobsite.
- Maintenance notes to preserve rating over time.
◆ Lifecycle assessment, maintenance profiles, and long-term cost benefits with Meisa
Lifecycle studies in 2026 look beyond first cost. They compare production impacts, transport savings, maintenance effort, and refurbishment options for flexible stone façades.
1. Environmental footprint and material efficiency
Thin stone cuts raw material use and transport weight. Meisa systems reduce quarry waste while keeping the authentic look and texture of natural stone surfaces.
- Less stone per square meter than full slabs.
- Lower fuel use in shipping and lifting.
- Potential credits in green building schemes.
2. Maintenance cycles and cleaning strategies
Non-porous backings and quality sealers keep dirt on the surface. Simple washing extends façade life, reducing deep restoration cycles and scaffolding costs.
| Activity | Typical Interval | Notes |
|---|---|---|
| Visual inspection | Yearly | Check joints, sealants, fixings |
| Cleaning | 2–5 years | Depends on pollution level |
| Sealer renewal | 8–12 years | Where specified by system |
3. Long-term cost planning for owners
When owners factor reduced structure weight, faster installation, and longer maintenance intervals, flexible stone systems often show strong whole-life cost advantages.
- Lower frame and foundation demands.
- Shorter façade programs and less downtime.
- Predictable maintenance budgets over decades.
Conclusion
Industry white papers on flexible stone panels in 2026 highlight clear benchmarks for strength, durability, and fire performance. Designers gain practical data to plan safer, lighter façades.
Meisa systems use these benchmarks to refine panel structure, finishes, and fixings. Owners benefit from better lifecycle profiles, simpler maintenance, and lasting architectural quality.
Frequently Asked Questions about flexible stone panels
1. Are flexible stone panels real stone or imitation?
They use a thin layer of real stone bonded to a flexible backing. This keeps authentic texture and color while lowering weight and improving handling on site.
2. Can flexible stone panels be used on high-rise buildings?
Yes, when tested and detailed correctly. Engineers review wind, fire, and anchorage reports to ensure the complete system meets local high-rise façade rules.
3. How long do flexible stone façades typically last?
With proper design and regular cleaning, service life can match or exceed many traditional cladding systems. Stable backing and good sealers support long-term performance.
4. Are flexible stone panels difficult to repair?
No. Damaged panels are usually cut out and replaced within the same fixing system. Light weight and flexible backings make access and replacement easier.
